Centor F3 Bottom Rolling Folding Door System

Centor F3 Folding Door System Bottom Rolling | 80kg per panel | 1000mm max panel width

Key Features

Centor F3 is a bottom-rolling folding door system that transfers the door weight from the top of the opening to the bottom, so there is no need for a strong overhead structural beam. This means folding doors can be installed without structural modifications made to the opening, and are now suitable and cost-effective even for small-scale renovation projects.

Offering fingertip operation synonymous with all Centor products, the F3 bottom-rolling system can be installed in any opening, including retrofit into openings that formerly held sliding doors.

Living spaces can be transformed and the line between inside and outside blurred, with the F3 offering openings up to 11.4m wide using Centor tracks, with wider openings possible using custom systems.

Thanks to sophisticated engineering Centor F3 doors slide effortlessly with the bearings and rolling surface concealed away from debris inside a low profile and unobtrusive sill. Patented weather-sealing technology offers impressive water performance ratings, as well as improving thermal performance and helping to reduce noise penetration.

Centor Surelock 4™ ensures the system is fully adjustable with simple hand tools, helping to compensate for less than perfect openings

THe F3 System uses the same hinges and half offset hinges as the E3 system.

Key Technical Details
Max Panel Weight: 80kg
Max Panel Height: 2700mm
Max Panel Width: 1000mm
Min Panel Thickness: 35mm
Max No. Panels: 16 (8 left, 8 right)
Max Opening Width: 11.4m Centor Track or 14.4m Custom Track
Finishes (Hardware): SSS, PVD Brass and Bronze
Finishes (Sill): Natural (Milled) and Bronze
Finishes (Tracks): Natural (Milled) , Bronze and Gold Anodised

Centor F3 Bottom Rolling Folding Door System
Centor F3 Concealed Pivot Set

Centor F3 Concealed Pivot Set.Available in a range of finishes.

Centor F3 Concealed Pivot Set

From £72.01 (ex VAT)
£86.41 (inc VAT)

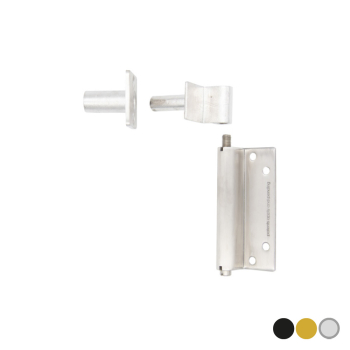

Centor F3 Wall Pivot Set

Centor F3 Wall Pivot Set.Available in a range of finishes.

Centor F3 Wall Pivot Set

From £67.42 (ex VAT)
£80.90 (inc VAT)

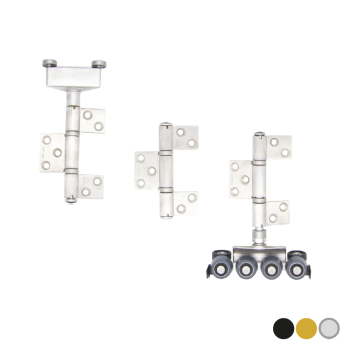

Centor F3 Concealed Intermediate Set

Centor E2 Concealed Intermediate Set.Available in a range of finishes.

Centor F3 Concealed Intermediate Set

From £139.60 (ex VAT)
£167.52 (inc VAT)

Centor Floor Rolling Track Seal Silicone

Centor Floor Rolling Track Seal Silicone.For use with Centor F3 Sills.Sold per m

Centor Floor Rolling Track Seal Silicone

Stock Code: CENFRBTSSI
3 In Stock
£7.62 (exc VAT) per Each
£9.14 (inc VAT)
Quantity: - +
Centor F3 Rolling Simple Sill End Caps - Pair

Centor F3 Rolling Simple Sill End Caps.Sold as a pair for use with Centor F3 Sills.

Centor F3 Rolling Simple Sill End Caps - Pair

Stock Code: CENFRASSEG
1 In Stock
£1.25 (exc VAT) per Each
£1.50 (inc VAT)
Quantity: - +

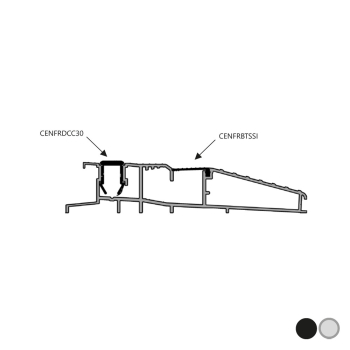

Centor F3 Rolling Dropbolt Channel Cover

Centor Floor Rolling Track Dropbolt Channel Cover.For use with Centor F3 Disabled Sills.Supplied in 3m lengths.

Centor F3 Rolling Dropbolt Channel Cover

Stock Code: CENFRDCC30
1 In Stock
£8.86 (exc VAT) per Each
£10.63 (inc VAT)
Quantity: - +
