Winkhaus FGTE Thunderbolt

To Suit

Type

Backset

Please select from the options above.

Quantity:

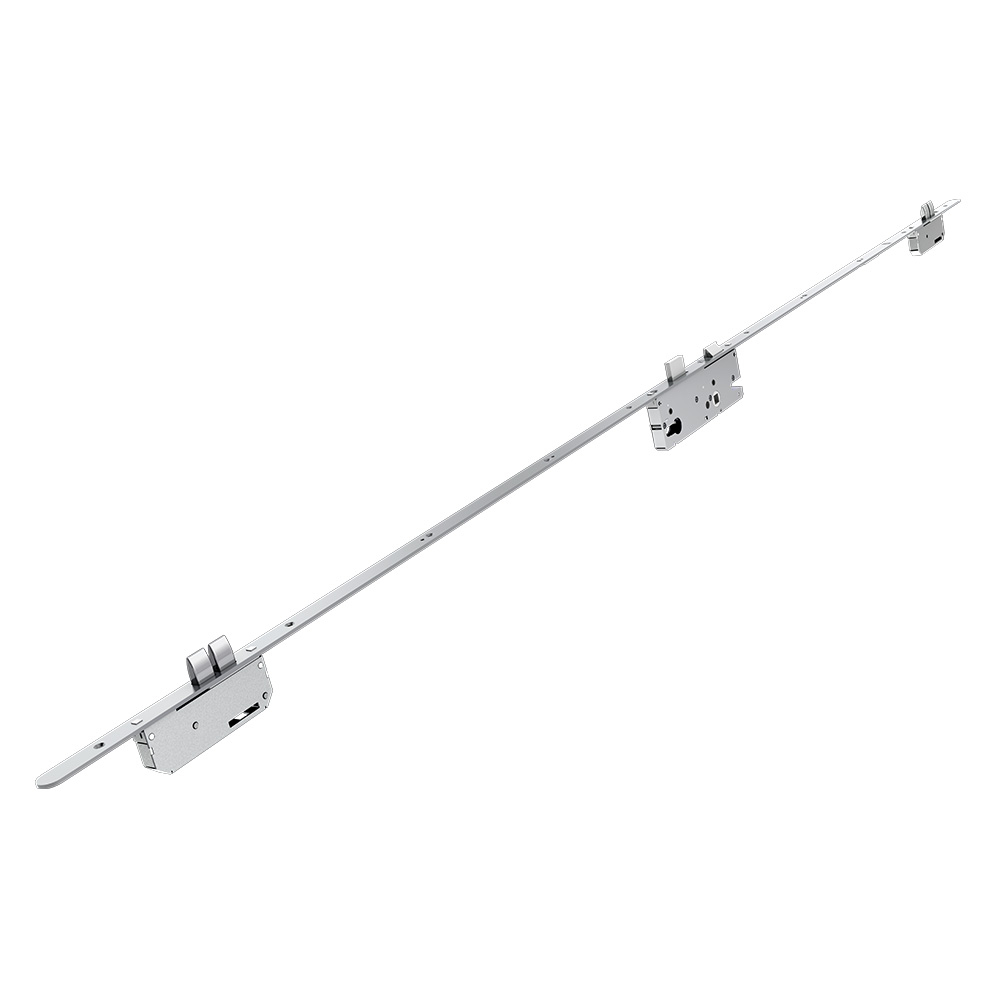

FGTE Thunderbolt - Deadbolt lock | Full Length | Lever operated.

Lever operation means the top/bottom deadbolts are engaged when the lever is raised whilst the cylinder operates the central gearbox.
Full length faceplate designed for a groove down the full edge of the door and crop the lock to suit.
Lower top deadbolt position ideal for shorter doors.
Also compatible with standard FGTE/FAB double door locks.

Key Features

Winkhaus is a market leader in producing innovative security solutions to meet the changing security and ease-of-use requirements.
The Winkhaus Thunderbolt™ incorporates twin deadbolts in the upper and lower positions, for a total of 5 high security deadlocks.
Superbly engineered to provide very high security which is approved by the Police 'Secured by Design' to offer peace of mind.
Easily passes the rigours of PAS23/24 and EN 14351-1 2006 security standards when fitted into a door.
Unlike conventional hook locking systems the Thunderbolt has up to 50% greater fitting tolerance and a ±2mm adjustment is possible to adjust for misalignment after installation.
Locks are reversible; non-handed.

Key Technical Details

Backset: 35mm, 45mm
Profile Centre: 92mm
Groove Detail: 20mm Euro
Faceplate: 20 x 2105mm
Handle Height: 1050mm (recommended)

The Winkhaus Thunderbolt is supplied unhanded. If it is supplied with the latch striker in the wrong orientation it can be reversed in 3 easy steps.

Please select a product

Click on any of the following links to download the file.

Striker Latch Reversing Instructions (pdf)

Descriptions

FGTE Thunderbolt - Deadbolt lock | Full Length | Lever operated.

Lever operation means the top/bottom deadbolts are engaged when the lever is raised whilst the cylinder operates the central gearbox.
Full length faceplate designed for a groove down the full edge of the door and crop the lock to suit.
Lower top deadbolt position ideal for shorter doors.
Also compatible with standard FGTE/FAB double door locks.

Key Features

Winkhaus is a market leader in producing innovative security solutions to meet the changing security and ease-of-use requirements.
The Winkhaus Thunderbolt™ incorporates twin deadbolts in the upper and lower positions, for a total of 5 high security deadlocks.
Superbly engineered to provide very high security which is approved by the Police 'Secured by Design' to offer peace of mind.
Easily passes the rigours of PAS23/24 and EN 14351-1 2006 security standards when fitted into a door.
Unlike conventional hook locking systems the Thunderbolt has up to 50% greater fitting tolerance and a ±2mm adjustment is possible to adjust for misalignment after installation.
Locks are reversible; non-handed.
