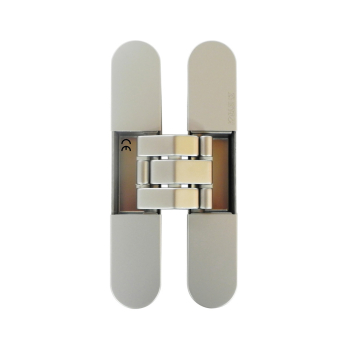

Invoke 3D Adj Concealed Hinge 180' Silver 95mmx23mmx45kg FR

Stock Code: 20.08.03-15

Available to Order - more stock is on the way

£34.86 (exc VAT) per Each
£41.83 (inc VAT)

Quantity Ordered	Price per Each
1 - 9	£34.86 (exc VAT)
10+	£30.06 (exc VAT)

Quantity: - +

Invoke 3D 180° Concealed Adjustable Hinge for enabling perfect door alignment.

- Concealed 180° hinge system for unrebated interior doors, which offers outstanding loading capacity, easy installation and is completely hidden when the door is closed
- Easily adjustable in 3-dimensions to enable perfect door alignment
- Installation is convenient and simple even when installing large and heavy doors
- Fire rated for FD30 doors
- Universal handing.

Adjustments:
- Horizontal adjustment +3/-2mm
- Depth adjustment +/- 1mm
- Vertical Adjustment +/- 2.5mm

Weight Bearing:
- 2 hinges 45kg (if leaf height does not exceed 2.1m)
- 3 hinges 60kg (if leaf height does not exceed 2.1m)
- 4 hinges 60kg (if leaf height DOES exceed 2.1m)

Size	95 x 23mm
Finish	Silver
Max Door Weight	45 - 60kg
Minimum Door Thickness	32mm

Click on any of the following links to download the file.

20.08.03-15 Technical Drawing (pdf)

Descriptions

Invoke 3D 180° Concealed Adjustable Hinge for enabling perfect door alignment.

- Concealed 180° hinge system for unrebated interior doors, which offers outstanding loading capacity, easy installation and is completely hidden when the door is closed
- Easily adjustable in 3-dimensions to enable perfect door alignment
- Installation is convenient and simple even when installing large and heavy doors
- Fire rated for FD30 doors
- Universal handing.

Adjustments:
- Horizontal adjustment +3/-2mm
- Depth adjustment +/- 1mm
- Vertical Adjustment +/- 2.5mm

Weight Bearing:
- 2 hinges 45kg (if leaf height does not exceed 2.1m)
- 3 hinges 60kg (if leaf height does not exceed 2.1m)
- 4 hinges 60kg (if leaf height DOES exceed 2.1m)

Specifications

Size	95 x 23mm
Finish	Silver
Max Door Weight	45 - 60kg
Minimum Door Thickness	32mm

Downloads

Click on any of the following links to download the file.

20.08.03-15 Technical Drawing (pdf)
