Iseo F6S+ 35/35 Double Euro Cylinder Brass Keyed Alike

Iseo F6 extra S euro cylinder is made to the highest security standards, internationally certified. International standard like SKG certificate is a guarantee of high resistance combined with optimum security against snapping and plug extraction. BSI Kitemark is one of the most respected and trusted product certification marks, as it represents a symbol of quality and safety against manipulation.

ATTACK RESISTANCE:
• Grade D (max grade) as per EN1303:2015
• Standard security level: 6 pins key bitting system in stainless steel
• Picking resistance thanks to brass mushroom shaped counter pins
• Drilling resistance thanks to additional inserts positioned in cylinder body and plugs. Certified according to SKG *** stars requirements.
• Spring tempered steel bar increasing resistance against snapping and breaking
• Bumping resistance: certified bump resistant pins and counter pins. Certified according to BS EN 1303:2005 TS007:2014, 1 star on BSI certificate n. KM 544418.
• Tearing –Snap Resistant bar to protect against snapping Sacrificial cut to increase protection against lock snapping

KEY RELATED SECURITY:
•Grade 5: min. 30.000 differs
•Standard vertical nickel coated brass key
•Code numbering on key neck

DURABILITY:
• Grade 6: 100.000 cycles

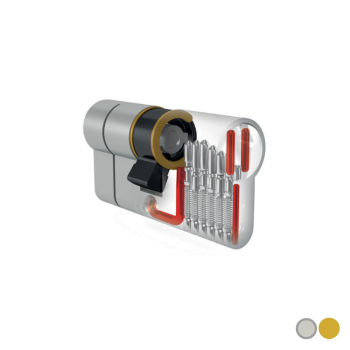

CYLINDER
Brass cylinder body
DIN cam
Brass mushroom counterpins for higher resistance against picking
Brass plug with special inserts to increase drilling protection
Stainless steel springs
Stainless steel bitting pins
Cylinder body with special insert to increase drilling protection
Sacrificial cut (on both sides only for off - centre dimensions)
Spring tempered steel bar to increase resistance against snapping
Fixing screw M5*85mm

KEY
Standard vertical nickel coated brass key
Code numbering on key neck

RANGE AND FINISHES:
F6 Extra S cylinders are available as single, double, knob and oval cylinders
Finishing: nickel plated and satin brass

CERTIFICATIONS: EN1303:2015
1 - grade 1 use by persons that have a high incentive to pay attention and a low propensity to misuse
2 - grade 6 (max grade) Durability test up to 100.000 cycles
3 - grade 0 no requested requirement
4 - grade B Fire resistance: useful on fire doors
5 - grade 0 no requirements
6 - grade C (max grade) High resistance to corrosion (96h salt spray); temperature -25°C to + 65°C
7 - grade 5 key security: min. number of effective differs 30.000
8 - grade D (max grade): 5/10 minutes resistance to drilling and to brutal attacks

SKG ***
SKG is an independent Dutch testing and certification institute for technical developments which tests locks for doors and windows according to specific standards and methods. SKG certification is a guarantee of high resistance against burglary and brutal attack thanks to specific devices which increase cylinder resistance.

BSI *
BSI Kitemark is one of the most respected and trusted product certification. BSI one star means that the cylinder has been designed to get high protection against manipulation attacks, such as bumping and picking.
