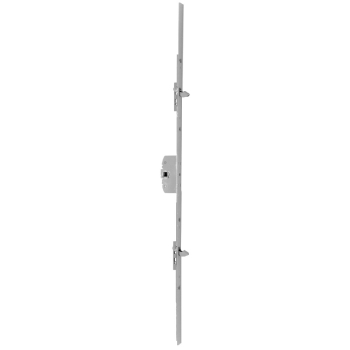

IPA 23748 920mm Ear Espag Bolt 25mm B/Set 15mm Bolt

Stock Code: RJZ953

Manufactured upon ordering - usually despatched within 5-6 weeks

£17.54 (exc VAT) per Each
£21.05 (inc VAT)

Quantity Ordered	Price per Each
1 - 4	£17.54 (exc VAT)
5+	£16.27 (exc VAT)

Quantity: - +

IPA ear espagnolette lock ideal for flush-casement or stormproof window applications.

'Ear' type locking system available with 28mm or 25mm backset.
Can be used with friction stays, extension pieces, connection pieces and shootbolts.
Requires 7-8mm spindle sleeve for use with standard espag handles.

Fits in the IPA 17.3 x 3mm groove.

Standard Shortening Possibilities:
130mm at the top with side bolts out.
130mm at the bottom with side bolts in.

Shortening Possibilities when used with handle operated friction stay:
110mm at the top with side bolts out.
130mm at the bottom with side bolts in.

*Keeps, Spindle Sleeves and Shootbolts not included.

Length	920mm
Backset	25mm
Brand	IPA

Click on any of the following links to download the file.

Technical Drawing (pdf)

Descriptions

IPA ear espagnolette lock ideal for flush-casement or stormproof window applications.

'Ear' type locking system available with 28mm or 25mm backset.
Can be used with friction stays, extension pieces, connection pieces and shootbolts.
Requires 7-8mm spindle sleeve for use with standard espag handles.

*Keeps, Spindle Sleeves and Shootbolts not included.

Specifications

Length	920mm
Backset	25mm
Brand	IPA
