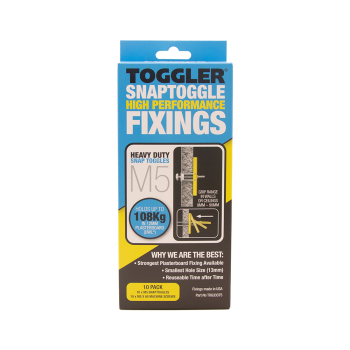

Toggler M5 Snaptoggle and 60mm Machine Screw 10 Pack

10 x M5 (M5 thread) SNAPTOGGLE Fixings

10 x  M5 x 60mm Machine Screws included

• Bolt Size: M5
• Pack Size: 10 (including 10x M5 x 60mm machine screws)
• Ultimate Working Load (UWL) in 12.5mm Plasterboard: 108kg
• Safe Working Load (SWL) in 12.5mm Plasterboard*: 27kg
• Drill Hole Diameter: 13mm
• Grip (Wall Thickness) Range: 9.5 - 92mm
• Requires a Cavity of at least 48mm

* Multiple fixings can be used to increase the safe working load of what they will collectively hold. Note: This is dependent on the material they are being fixed to and the spacing of the fixings (eg. 2x fixings used in plasterboard right next to each other will not equal double the load as the same small area of plasterboard will have the entire load excerted on it).

The SNAPTOGGLE anchor is a heavy-duty hollow wall anchor for use in walls, ceilings, or floors of materials such as gypsum board, drywall with a wood or steel stud, concrete block, tile over drywall, wood, etc.

The anchor is pre-assembled and supplied ready for immediate use.

The ratcheting strap / locking cap assembly positions the strong one-piece zinc-plated (or stainless) steel anchoring channel on the rear of the wall, capturing it snugly and securely between the anchoring channel and the cap.

The remaining portion of the straps on the outside of the wall are then easily and quickly snapped off by hand at the required length, flush with the surface of the wall (no extra tools required). Holding is dependent only on a metal bolt to metal channel connection.

• Save Time! So much quicker and easier to install than other comparable cavity wall fixings.
• Exceptionally strong! Up to twice as strong as old fashioned wing toggles
• Save Money! Turn a 2-person job into a 1-person job, and use shorter bolts
• Corrosion Resistant! Longlife Gold plating and stainless steel versions available
• Re-useable in the same hole! Remove the bolt without losing the anchor
• Versatile! Works in both cavity and solid material up to 90mm (240mm Long anchor available)

NOTE: BM8 & BM10 SnapToggles require a 19mm hole.
