MACO M-TS Automatic Multipoint Lock Radius End

Backset

Please select from the options above.

Quantity:

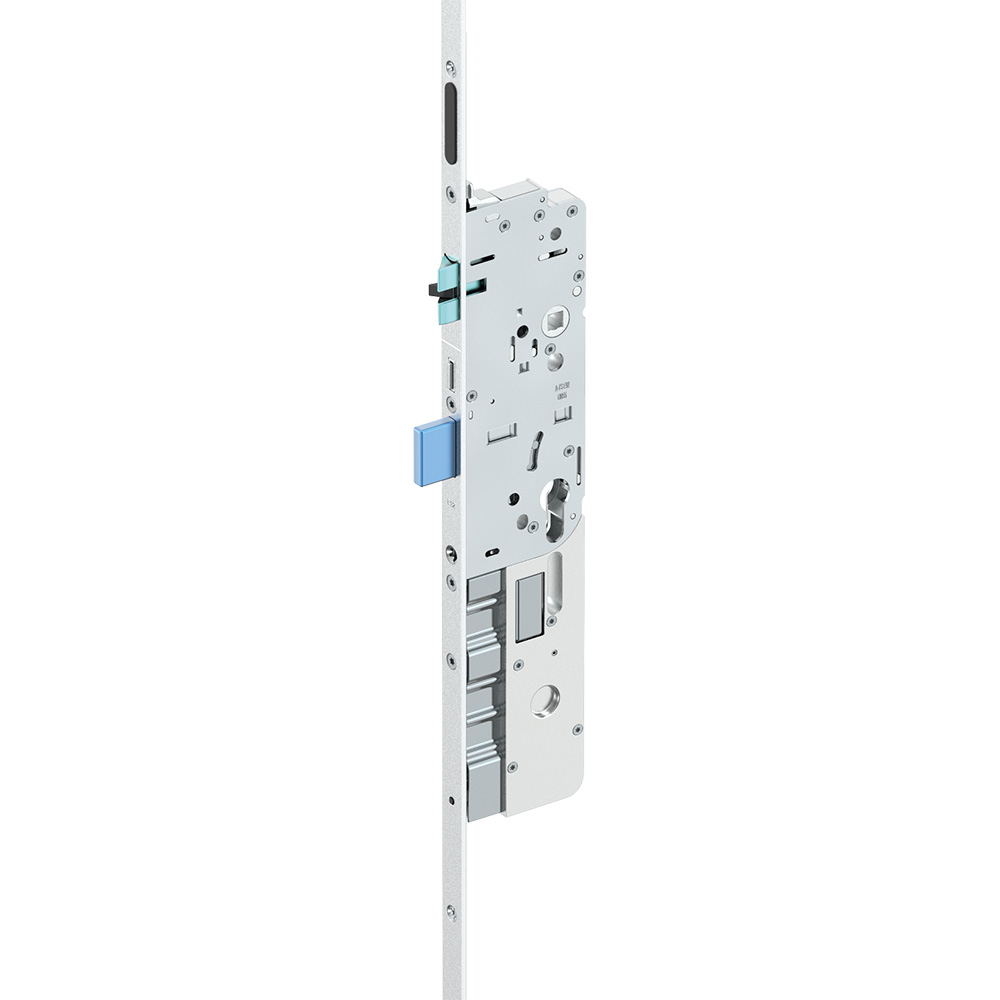

Maco M-TS Electronic Automatic Multipoint Lock for Timber/Wooden Doors | Radius End

These Maco M-TS Automatic Multipoint Locks are available with a 45mm or 55mm backset.

Fast installation for the joiner, fast operation for the end user.

The Maco M-TS is the fastest motorised automatic multipoint door lock on the market.

Based on the successful A-TS mechanical automatic door lock from Maco, the M-TS takes automatic door locking to new heights with its integrated motor.

The motor sits on the main lock box, directly controlling the automatic locking system. This opens the door faster and quieter than conventional models, in a record 0.3 seconds.

As the motor is located directly on the main lock box, it speeds up the milling process of the door leaf.

Key Features

Three latches engage, ensuring an even distribution on the weather seals along the entire height of the door. The door is sealed tight, keeping drafts and moisture outside and the warmth inside.
As soon as the door “sits” and the latches have engaged, the two hooks and the central deadbolt automatically engage (powered by the motor) and the door is triple locked, all without a key. In addition, a magnet monitors the correct closing position, forming the two criteria to ensure secure locking.
A range of keyless entry options are available. The most flexible comes in the form of an easily integrated Bluetooth module that allows the door to be controlled via a smart phone app. Keypads and fingerprint controls can also be integrated.
The M-TS can also be wired into a range of popular third-party smart-home systems or commercially available alarm systems.
The M-TS can be used for left hand or right hand configurations, simply by unscrewing and reversing the latches.

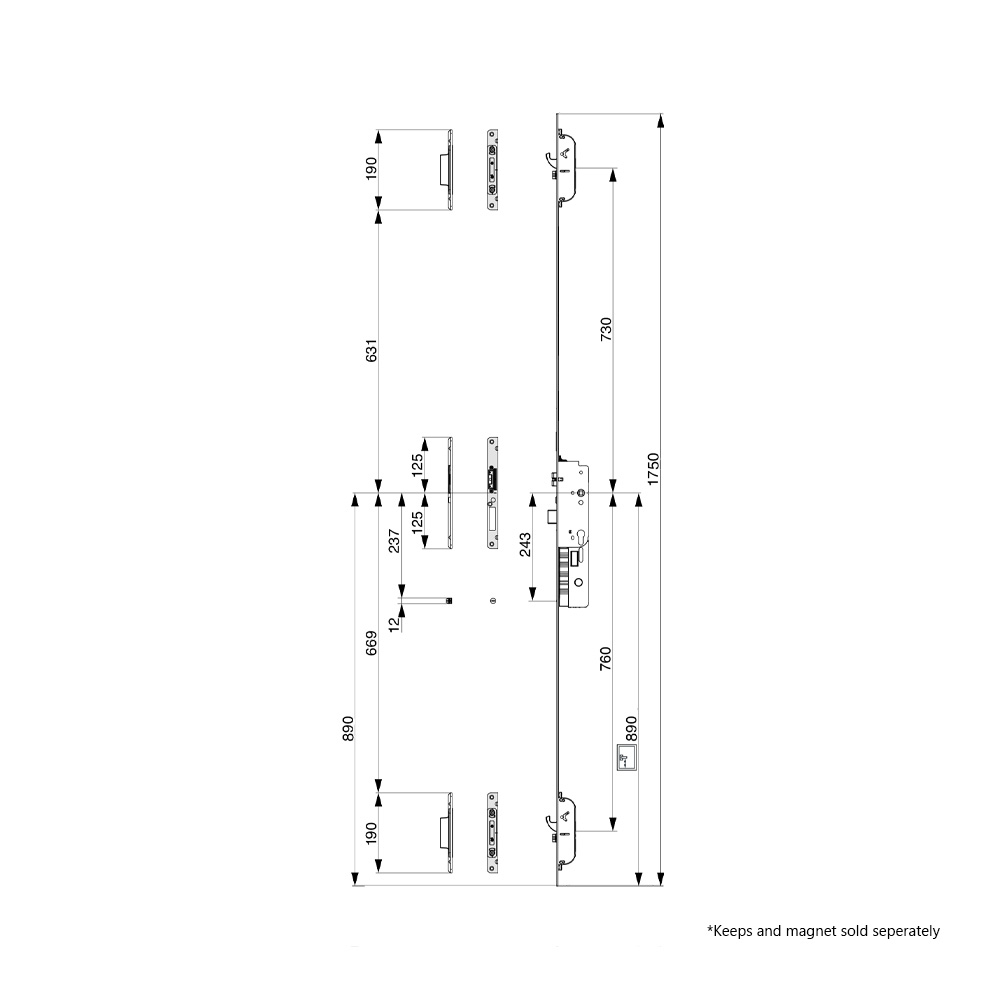

Key Technical Details

Backset: 45mm, 55mm
Profile Centre: 92mm
Faceplate: 1750 x 20mm (Radius End)

Please select a product

Click on any of the following links to download the file.

Descriptions

Three latches engage, ensuring an even distribution on the weather seals along the entire height of the door. The door is sealed tight, keeping drafts and moisture outside and the warmth inside.
As soon as the door “sits” and the latches have engaged, the two hooks and the central deadbolt automatically engage (powered by the motor) and the door is triple locked, all without a key. In addition, a magnet monitors the correct closing position, forming the two criteria to ensure secure locking.
A range of keyless entry options are available. The most flexible comes in the form of an easily integrated Bluetooth module that allows the door to be controlled via a smart phone app. Keypads and fingerprint controls can also be integrated.
The M-TS can also be wired into a range of popular third-party smart-home systems or commercially available alarm systems.
The M-TS can be used for left hand or right hand configurations, simply by unscrewing and reversing the latches.

Key Technical Details

Backset: 45mm, 55mm
Profile Centre: 92mm
Faceplate: 1750 x 20mm (Radius End)
