Maco C-TS Stable Door Multipoint Lock

Brand

Backset

Faceplate

Finish

Please select from the options above.

Quantity:

Maco Interlocking Stable Door Locking System 45mm Backset Sq End (Lock Only - Keeps sold sperately)

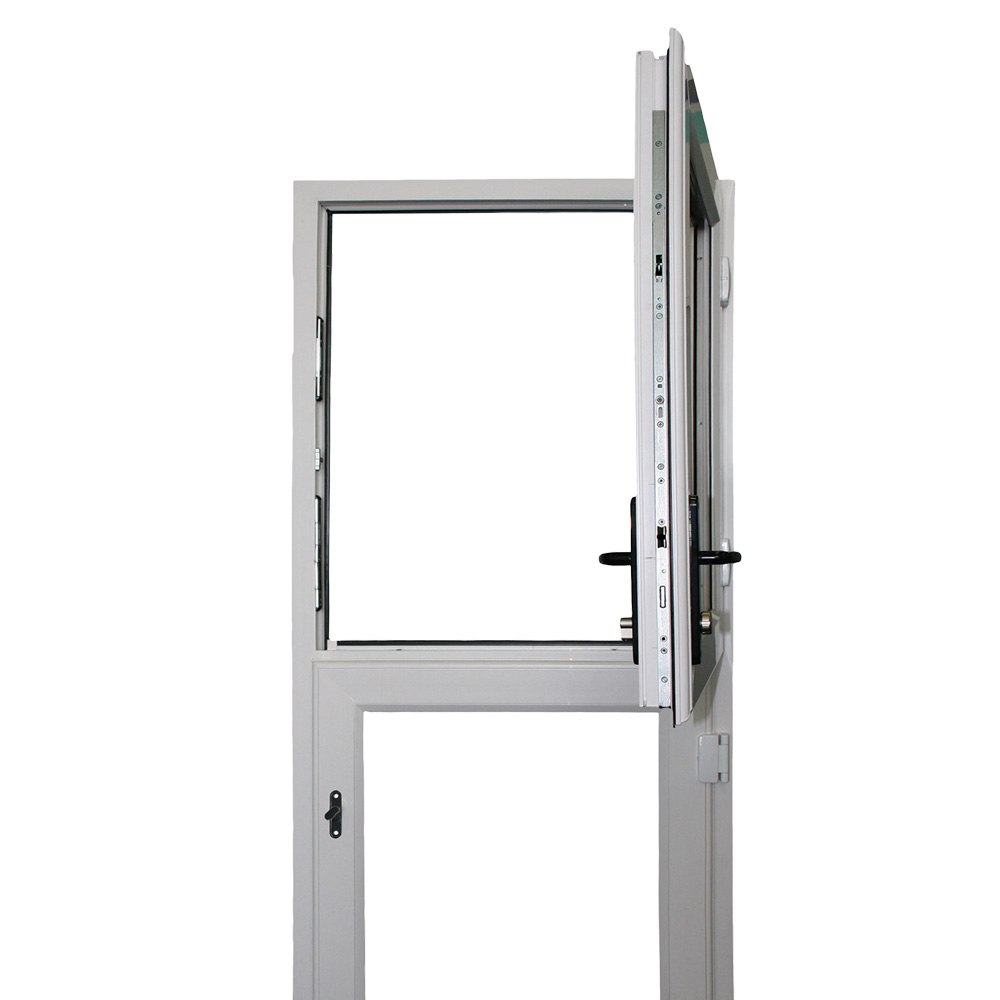

The Maco stable door locking system comes with an automatic interlocking shootbolt that connects the upper/lower halves of the door.

The upper lock has a lever-operated gearbox with a soft latch and deadbolt.

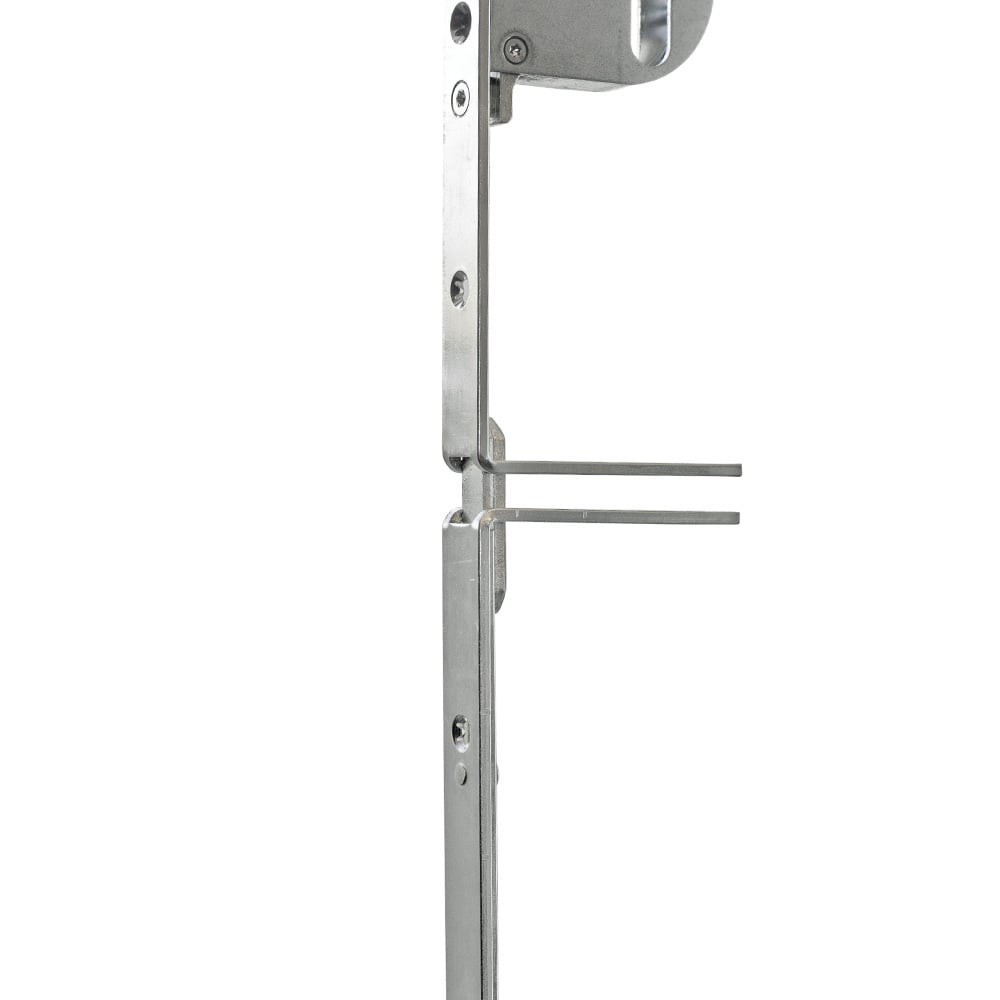

The lower lock has a cylinder-operated gearbox with a deadbolt and vertical coupling shootbolt that connects to the upper half of the door allowing the stable door to form a single door.

In the closed position each sash has its own independent locking system.

Maco silent latch function
Please note that one centre keep and three hook keeps are required per lock
Also available in Tricoat-Evo

Key Features

A purpose made locking system for stable doors that maintain traditional looks and operation whilst offering high levels of performance and ease-of-use.
In the closed position each sash has its own independent locking system; A lever operated lock is fitted to the top half of the door set and a key operated lock is installed in the bottom half.
Both locks interlock with one another through the overlapping profile to offer shootbolt locking from the bottom door into the top door lock resulting in increased levels of performance and security.
Chamfered steel hook bolts offer maximum security.
Non-handed lock; can be used on left or right handed doors.

Key Technical Details

Backset: 45mm
Profile Centre: 92mm
Groove Detail: 16mm Euro
Lock Throw: 20mm

Please select a product

Click on any of the following links to download the file.

Maco Stable Door Lock Technical Drawing (pdf)
