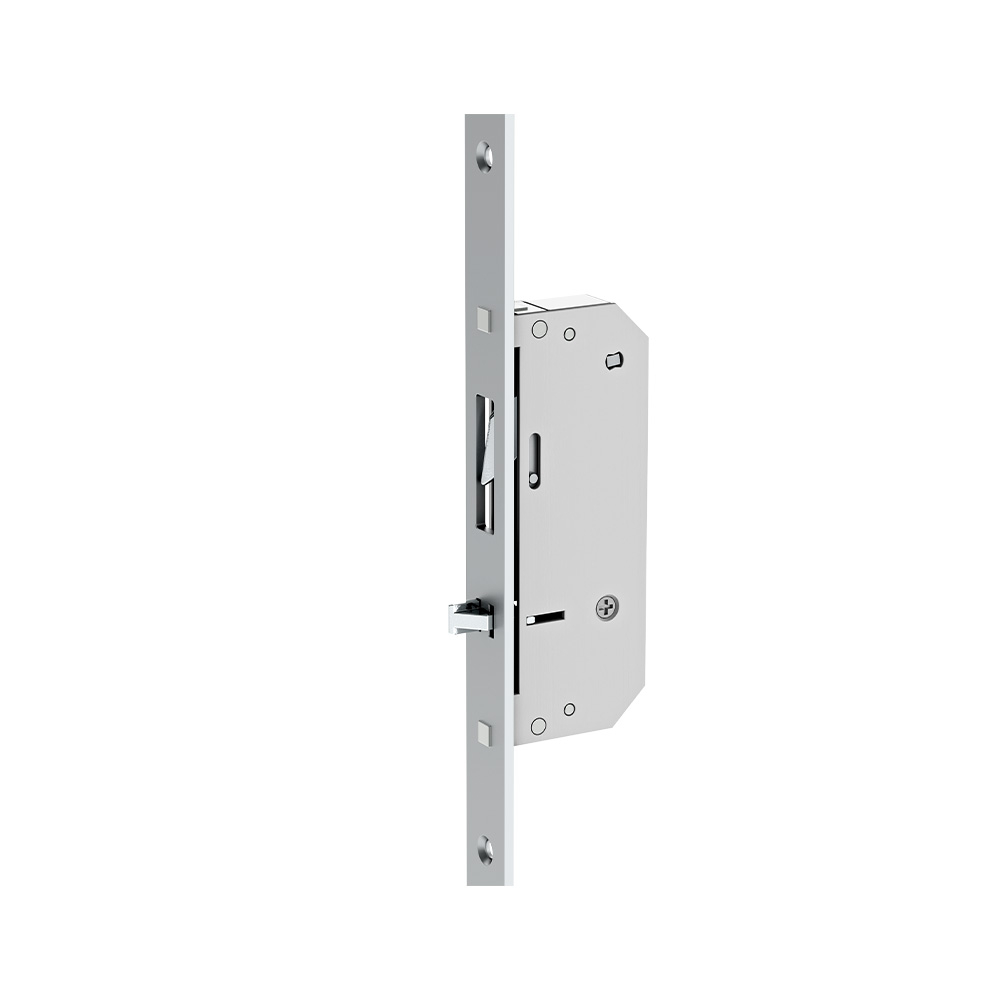

Winkhaus AV2 Heritage Multipoint Lock Radius End

AV2 Heritage Automatic Locking Single Door Multi Point Lock - Hook Lock | Radius End

The Winkhaus AV2 is an automatic lock activated when the door is closed by two nibs on the top/bottom hooks coming into contact with the keeps.

• Radius end faceplate doesn’t require cropping.
• Main lock gearbox raised to match traditional ‘night-latch’ Euro cylinder position.

Key Features

• Winkhaus is a market leader in producing innovative security solutions to meet the changing security and ease-of-use requirements.
• With the Winkhaus autoLock AV2 Heritage l security is automatically engaged - preventing the door being ‘locked on the latch’.
• Simply shut the door and its locked & secure!
• A Euro profile cylinder is found at a traditional round cylinder pull height & the locking mechanism engages automatically when the door is closed.
• Enter via a key from outside. Exit by unlatching the door using the cylinder (key or turn) with no need to lift the handle to engage the lock.
• Easily passes the rigours of PAS23/24 and EN 14351-1 2006 security standards when fitted into a door.
• Superbly engineered to provide very high security which is approved by the Police ‘Secured by Design’ initiative.
• Option to be paired with electronic features.

Specially designed chamfered hook allows for a high degree of fitting tolerance.

The AV2 Heritage combines high levels of security with architectural heritage.

The door automatically locks when closed and a key is required to gain entry from the outside.

Key Technical Details

Backset: 35mm, 45mm, 55mm
Profile Centre: 92mm
Groove Detail: 20mm Euro
Lock Throw: 25mm
Handle Height: 1400mm (aprox.)

Note: These locks are handed. To find out the handing of your door, click on the link below.
