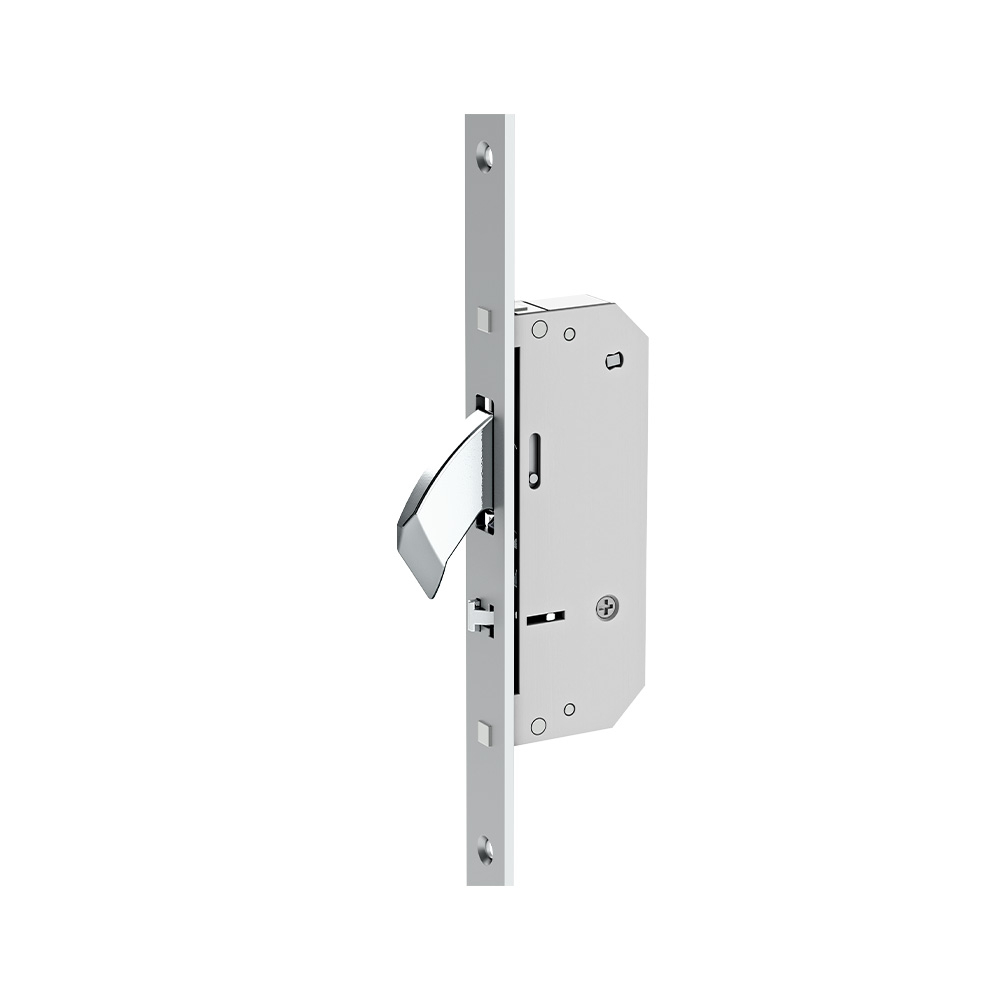

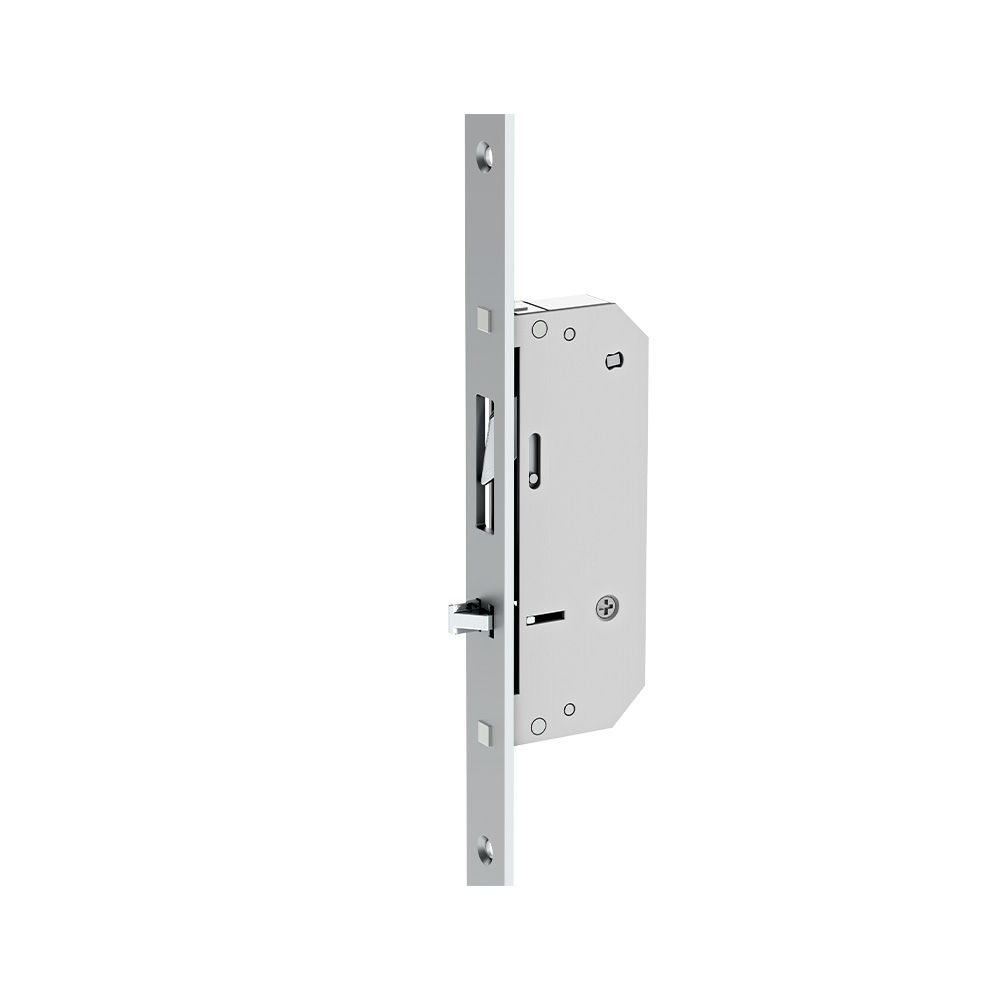

Winkhaus AV2 Multipoint Lock Full Length

AV2 Automatic Locking Single Door Multi Point Lock - Hook Lock | Full Length

The Winkhaus AV2 is an automatic lock activated when the door is closed by two nibs on the top/bottom hooks coming into contact with the keeps.

Full length faceplate designed for a groove down the full edge of the door and crop the lock to suit.

Key Features

• Winkhaus is a market leader in producing innovative security solutions to meet the changing security and ease-of-use requirements.
• With the Winkhaus autoLock AV2 full security is automatically engaged - preventing the door being ‘locked on the latch’.
• Simply shut the door and its locked & secure!
• Enter via a key from outside. Exit by unlatching the door using the cylinder (key or turn) with no need to lift the handle to engage the lock.
• Easily passes the rigours of PAS23/24 and EN 14351-1 2006 security standards when fitted into a door.
• Superbly engineered to provide very high security which is approved by the Police ‘Secured by Design’ initiative.
• Option to be paired with electronic features.

Specially designed chamfered hook allows for a high degree of fitting tolerance.

Two solid anti-pushback hooks operate automatically giving instant security.

The door automatically locks when closed and a key is required to gain entry from the outside.

Key Technical Details

Backset: 45mm, 55mm
Profile Centre: 92mm
Groove Detail: 20mm Euro
Lock Throw: 25mm
Handle Height: 1050mm (recommended)

Note: These locks are handed. To find out the handing of your door, click on the link below.
