Maco C-TS Short

Backset

Finish

Please select from the options above.

Quantity:

Maco C-TS Short - Hook Multipoint lock.

Lever operated hooks.
Lower top hook position ideal for shorter doors.

Key Features

Highly secure multipoint locking system offering high levels of performance and ease of use.
Maco easy latch reduces noise and force required to latch the door.
Chamfered forged steel hook bolts offer maximum security.
Reduced machining time through smaller lock case design.
Superbly engineered to provide very high security which is approved by the Police 'Secured by Design' to offer peace of mind.
Easily passes the rigours of PAS23/24 and EN 1627-1630 security standards when fitted into a door.
Locks are reversible; non-handed.
Tested to 480hr Class 5 EN 1670 and also available in Tricoat-Evo surface finish (maximum corrosion resistance 2000hr to EN1670)

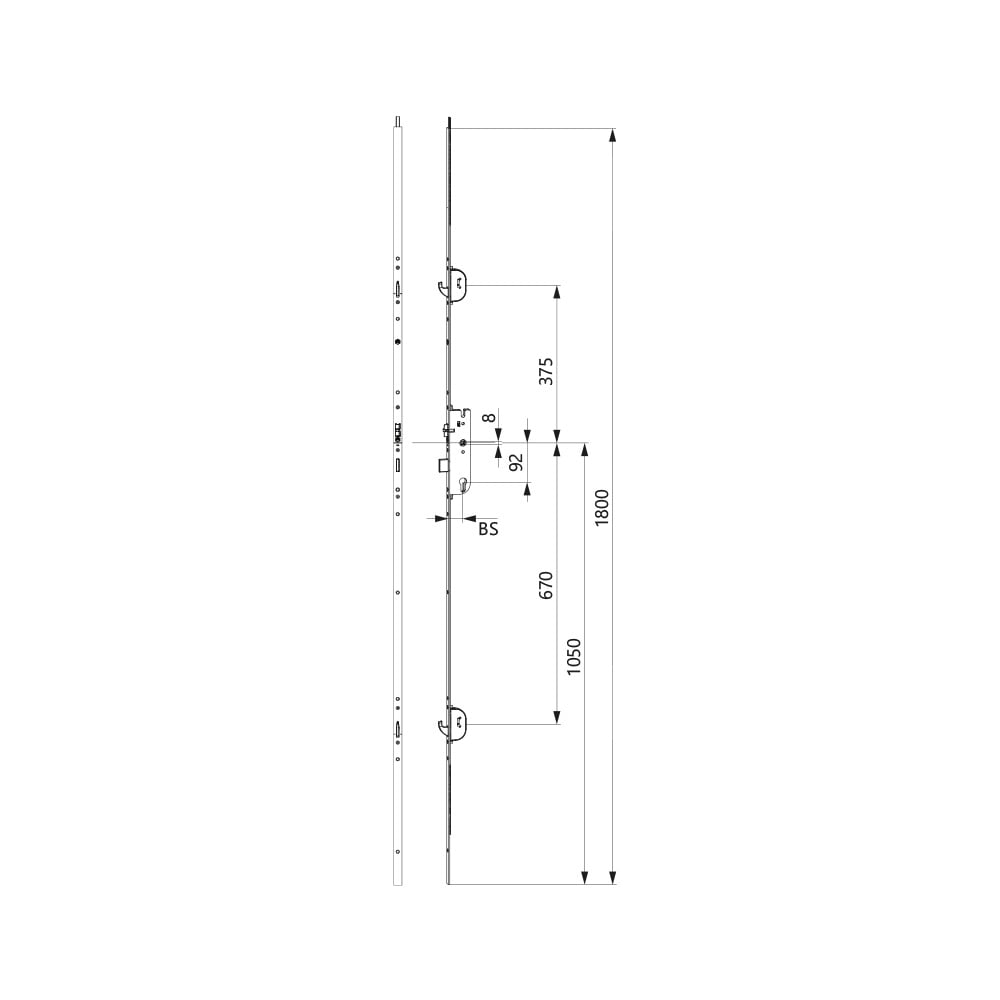

Key Technical Details

Backset: 35mm, 45mm
Profile Centre: 92mm
Groove Detail: 20mm Euro
Faceplate: 20 x 1800mm
Handle Height: 1050mm (recommended)

Please select a product

There are no downloads for this product.

Descriptions

Maco C-TS Short - Hook Multipoint lock.

Lever operated hooks.
Lower top hook position ideal for shorter doors.

Key Features

Highly secure multipoint locking system offering high levels of performance and ease of use.
Maco easy latch reduces noise and force required to latch the door.
Chamfered forged steel hook bolts offer maximum security.
Reduced machining time through smaller lock case design.
Superbly engineered to provide very high security which is approved by the Police 'Secured by Design' to offer peace of mind.
Easily passes the rigours of PAS23/24 and EN 1627-1630 security standards when fitted into a door.
Locks are reversible; non-handed.
Tested to 480hr Class 5 EN 1670 and also available in Tricoat-Evo surface finish (maximum corrosion resistance 2000hr to EN1670)

Key Technical Details

Backset: 35mm, 45mm
Profile Centre: 92mm
Groove Detail: 20mm Euro
Faceplate: 20 x 1800mm
Handle Height: 1050mm (recommended)
