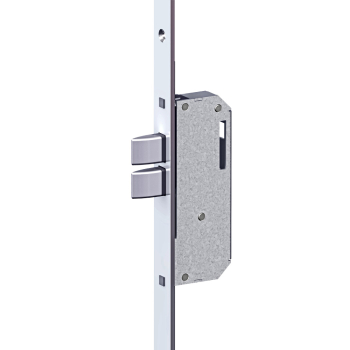

Winkhaus Thunderbolt Full Length Multi-Point Lock - 45mm Backset

Stock Code: RHZ1668

80 In Stock

£54.39 (exc VAT) per Each
£65.27 (inc VAT)

Quantity Ordered	Price per Each
1 - 4	£54.39 (exc VAT)
5+	£49.90 (exc VAT)

Quantity: - +

Winkhaus Thunderbolt Single Door Multi Point Lock (20mm Faceplate) 92mm Centres 45mm Backset Full Length Square End.

Lever operation means the top/bottom deadbolts are engaged when the lever is raised whilst the cylinder operates the central gearbox.
Full length faceplate designed for a groove down the full edge of the door and crop the lock to suit.

Key Features

Winkhaus is a market leader in producing innovative security solutions to meet the changing security and ease-of-use requirements.
The Winkhaus Thunderbolt™ incorporates twin deadbolts in the upper and lower positions, for a total of 5 high security deadlocks.
Superbly engineered to provide very high security which is approved by the Police 'Secured by Design' to offer peace of mind.
Easily passes the rigours of PAS23/24 and EN 14351-1 2006 security standards when fitted into a door.
Unlike conventional hook locking systems the Thunderbolt has up to 50% greater fitting tolerance and a ±2mm adjustment is possible to adjust for misalignment after installation.
Locks are reversible; non-handed.

Key Technical Details

Backset: 45mm
Profile Centre: 92mm
Groove Detail: 20mm Euro
Faceplate: 20 x 2105mm
Handle Height: 1050mm (recommended)
Winkhaus part number: 5004072

The Winkhaus Thunderbolt is supplied unhanded. If it is supplied with the latch striker in the wrong orientation it can be reversed in 3 easy steps.

Backset	45mm
Type	Without Shootbolt Function
Brand	Winkhaus
Faceplate	20 x 2105mm
To Suit	Medium FAB/Tall FAB
Operation	Lever

Click on any of the following links to download the file.

Descriptions

Winkhaus Thunderbolt Single Door Multi Point Lock (20mm Faceplate) 92mm Centres 45mm Backset Full Length Square End.

Lever operation means the top/bottom deadbolts are engaged when the lever is raised whilst the cylinder operates the central gearbox.
Full length faceplate designed for a groove down the full edge of the door and crop the lock to suit.

Key Features

Winkhaus is a market leader in producing innovative security solutions to meet the changing security and ease-of-use requirements.
The Winkhaus Thunderbolt™ incorporates twin deadbolts in the upper and lower positions, for a total of 5 high security deadlocks.
Superbly engineered to provide very high security which is approved by the Police 'Secured by Design' to offer peace of mind.
Easily passes the rigours of PAS23/24 and EN 14351-1 2006 security standards when fitted into a door.
Unlike conventional hook locking systems the Thunderbolt has up to 50% greater fitting tolerance and a ±2mm adjustment is possible to adjust for misalignment after installation.
Locks are reversible; non-handed.
